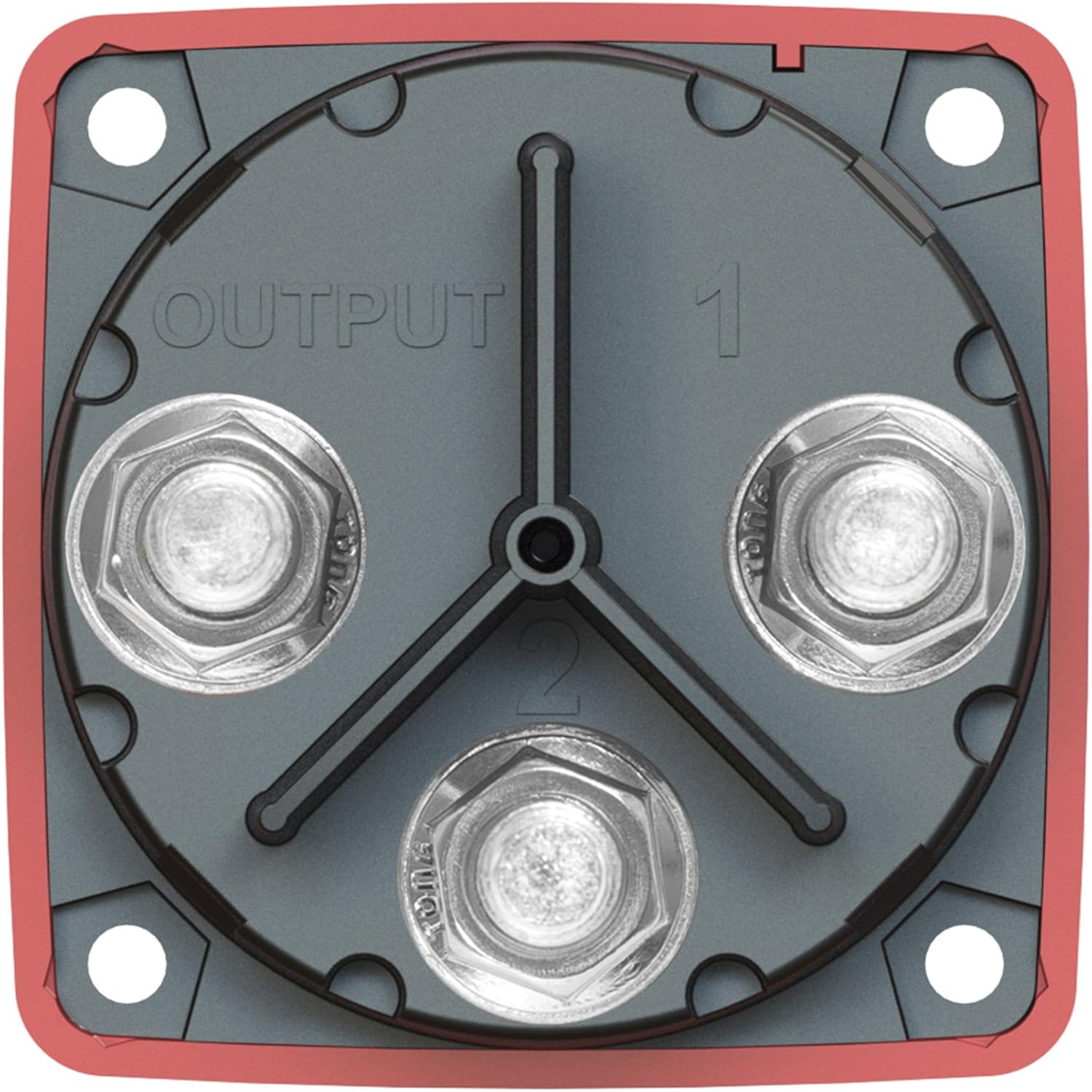

Blue Sea Heavy Duty Red Battery Cut Off Isolator Switch With Removeable Knob For Two Batteries
4.4 (103 items)
Limited Time SaleUS$37.63 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212756364 | Release Date | 2026/04/06 | List Price | US$25.08 | Model Number | 212756364 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Blue Sea M-Series Red Battery Selector Switch With Knob, Dual Battery Operation. Features: Switches Isolated Battery Banks To All Loads Or Combines Battery Banks To All Loads Make Before Break Contact Design Allows Switching Between Battery Banks Without Power Interruption Ignition Protected—Safe For Installation Aboard Gasoline Powered Boats Case Design Allows Surface Or Rear Panel Mounting Specs: Switch Type - Selector 4 Position Color - Red Switch Positions - 4 Battery Combine - Yes Alternator Field Disconnect - NO Maximum Voltage - 32V DC Continuous Rating - 300 Amps Intermittent Rating - 500 Amps 5 Minutes Cranking Rating 30 Sec - 900Amps Battery Inputs - 2 Cable Size To Meet Ratings - 4/0Awg Mounting Holes - Accept #10 Screw Terminal Stud Size - 3/8" Ring Terminals Weight - 0.77lb (0.35 kg) Sold As Each 16-126 K-Four Switches
- Blue Sea / K4 Switches
- Quality Switches For Automotive / Industrial / Marine And Many Other applications
- 32 Volt Max Battery Cut-Off Switch, Dual Battery Operation
- Sold As Each
- K Four Item #16-126
| Color | Red |
|---|---|
| Wattage | 9600 watts |
| Terminal | Marine |
| Brand Name | K-Four Switches |
| Unit Count | 1.0 Count |
| Item Weight | 1.3 Pounds |
| Switch Type | Knob, Push Button |
| Circuit Type | parallel |
| Contact Type | Normally Open |
| Manufacturer | K-Four Switches |
| Actuator Type | Knob |
| Material Type | Metal |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Operation Mode | Off |
| Controller Type | Ring |
| Contact Material | Brass |
| Operating Voltage | 32 Volts |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
